Inconel 601/UNS N06601/W.Nr. 4851/NS3103 Bar/ Rod/ Wire/Forging/Plate/Strip With Good Resistance In Heat Treating Furnaces
Inconel 601 (UNS N06601 / W.Nr. 2.4851 / NS3103) is a nickel-chromium-iron alloy known for excellent oxidation resistance up to 1200°C, even in cyclic conditions. It forms a dense, adherent oxide layer that resists spalling. With good mechanical strength, high-temperature corrosion resistance, and good weldability, it's ideal for thermal and chemical environments.
Bar, rod, and forging forms are used in furnace hardware, gas turbines, and petrochemical equipment. Wire serves well in heating elements and thermocouples. Plate and strip are applied in heat shields, muffles, and process vessels. Inconel 601 also resists carburization, nitridation, and oxidation in sulfur-rich atmospheres, making it widely used in aerospace, power generation, heat treating, and chemical processing industries.
Trade Code
| Chemical Composition Wt.% | % | Ni | Cr | Fe | C | Mn | Si | Cu | Al | S |
| Min | 58 | 21 | | | | | | 1 | |
| Max | 63 | 25 | Bal. | 0.1 | 1.5 | 0.5 | 1 | 1.7 | 0.015 |
| Physical Constants | Density(g/cm³) | 8.11 |
| Melting Range(℃) | 1320-1370 |
| Minimum mechanical properties of alloy at room temperature | Typical mechanical properties | Tensile strength Rm N/mm² | Yield strength RP 0.2 N/mm² | Elongation A5 % | Brinell Hardness HB |
| Annealing treatment | 650 | 300 | 30 | / |
| Solution treatment | 600 | 240 | 30 | 220 |
Overview of Inconel 601
Inconel 601 is a nickel-chromium-iron alloy designed for superior high-temperature oxidation resistance and good mechanical strength. It is particularly effective in thermal and cyclic heating environments, making it a go-to alloy for heat-intensive applications.
Key Features (All Forms)
Superior Oxidation Resistance
- Outstanding resistance to oxidation up to 1200°C (2200°F).
- Forms a tightly adherent oxide layer that protects against scaling even under thermal cycling.
Excellent High-Temperature Strength
- Good creep and rupture strength at elevated temperatures.
- Resistant to thermal fatigue, spalling, and metal dusting.
Thermal Shock and Heat Cycle Stability
- Excellent stability in repeated heating and cooling.
- Ideal for components that face frequent temperature swings (e.g., furnace parts).
Good Resistance to Corrosive Media
- Resists carbonization, sulfur-containing atmospheres, and mild acid or alkali environments.
- Useful in environments involving steam, flue gas, and oxidizing/reducing mixtures.
Good Fabricability and Weldability
- Easily machined, cold-formed, and welded using standard techniques.
- Good structural stability during fabrication and service.
Form-Specific Applications
Bar / Rod
- Used for shafts, bolts, fasteners, and components exposed to high heat or corrosive atmospheres.
- Excellent mechanical integrity in structural applications.
Wire
- Applied in heating elements, thermal sensors, springs, and welding wire.
- Maintains performance under repeated heating/cooling.
Forging
- Suitable for flanges, valve parts, high-temp fittings, and turbine hardware.
- Custom shapes with high mechanical performance and oxidation resistance.
Plate / Strip
- Commonly used in furnace hardware, combustion liners, ducts, and thermal insulation support systems.
- Retains strength and oxidation resistance after forming and welding.
|
|

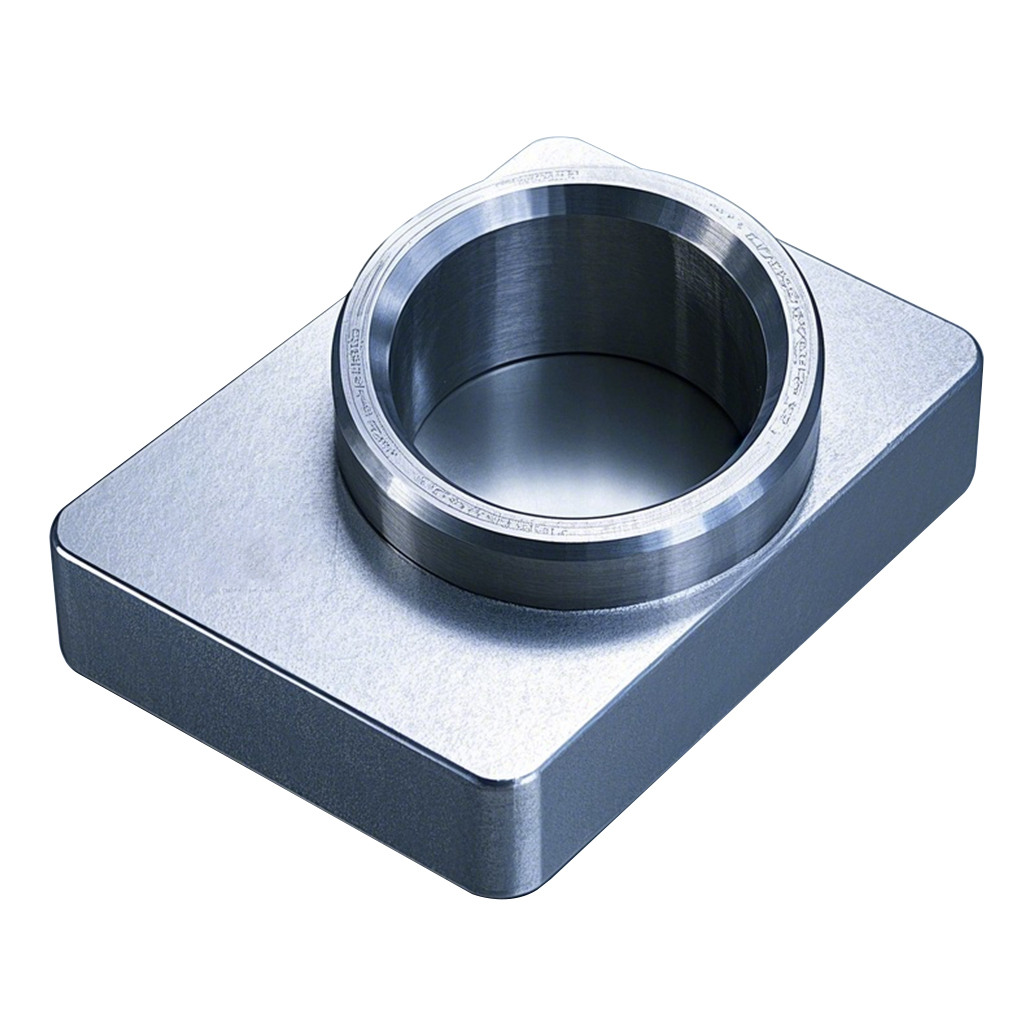

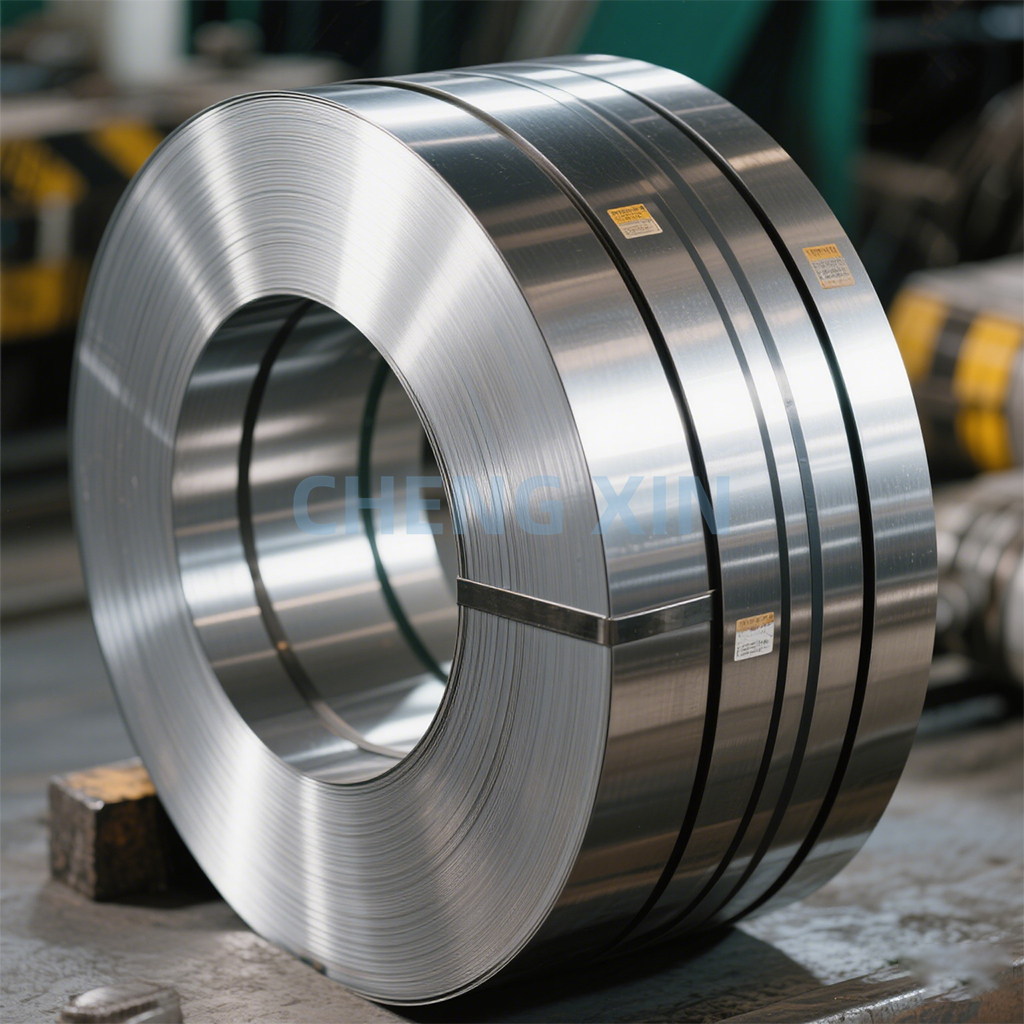

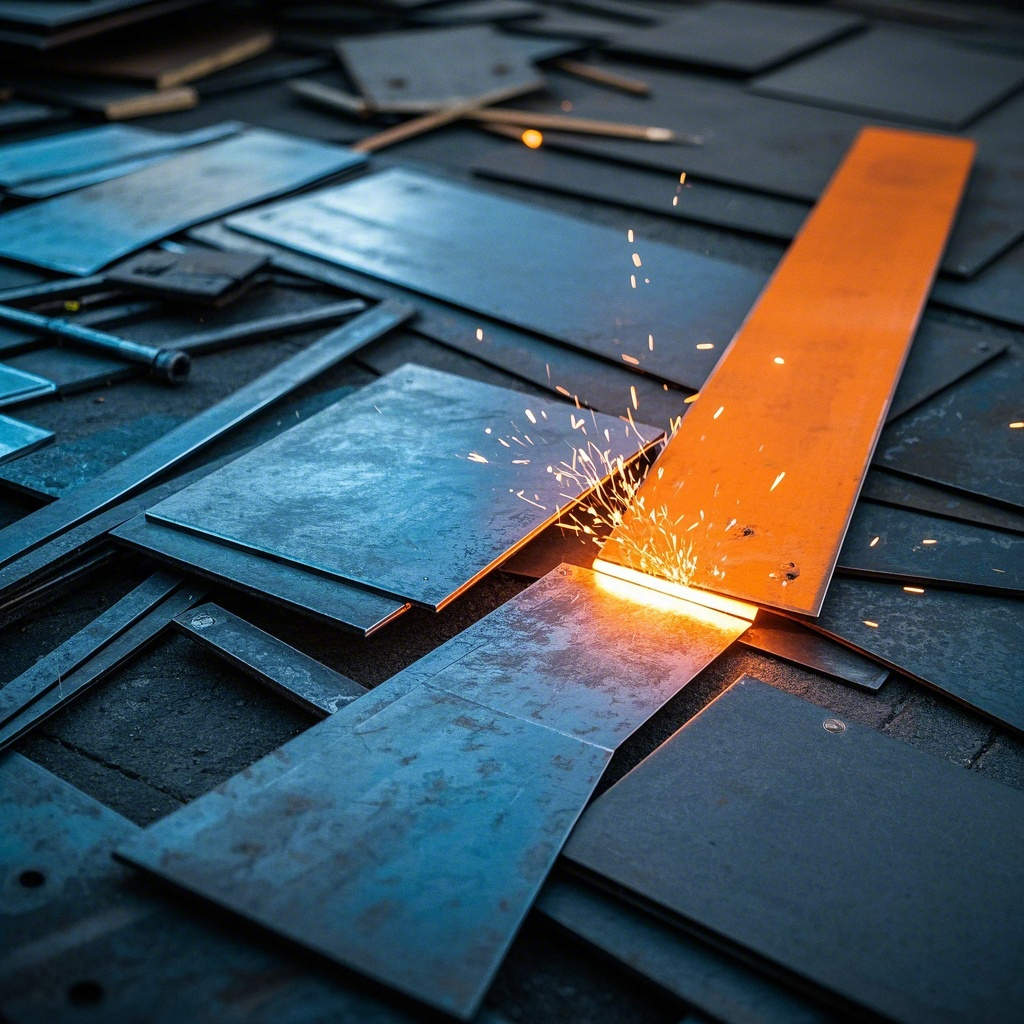

Inconel 601/UNS N06601/W.Nr. 4851/NS3103 Bar/ Rod/ Wire/Forging/Plate/Strip With Good Resistance In Heat Treating Furnaces Images
|
